Humminbird

Humminbird Helix5 Di 5"" Wvga Color Fishfinder G2

Humminbird Helix5 Di 5"" Wvga Color Fishfinder G2

$269.99 USD
$269.99 USD
Sale Sold out

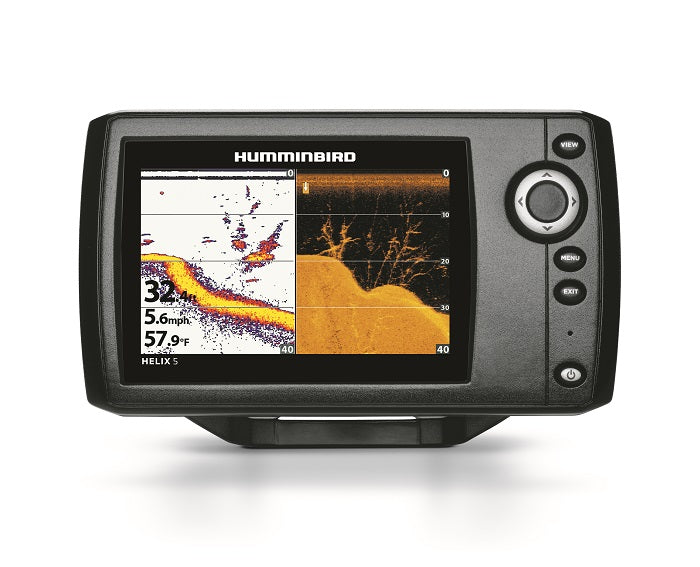

Humminbird HELIX 5 DI G2 Fishfinder

Model: 410200-1
UPC: 082324049019
  • Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
  • SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
  • Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
  • Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.

The HELIX 5 DI G2 with their new user interface and operating system, features a brilliant 800H x 480V, 5"" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.

Specifications
Display size 5 in
Display resolution 800 x 480
Display type Color TFT
Display colors grayscale 16-bit
Standard sonar Down Imaging/DualBeam PLUS
Standard sonar coverage 16°, 28°, 45° & 75° @ -10db
Standard sonar frequency 455/800/200/455 kHz
target separation 2.5 in
Power output RMS 500 watts
power output peak to Peak 4000 watts
Depth capability 350 ft (DI) & 600 ft (2D)
Temperature Built-in transducer
Speed Optional
Backlight LED
PC Connect Optional
Switchfire sonar Yes
Split screen zoom Yes
Split Screen Bottom Lock: Yes
Large digit view Yes
Card reader No
Input Voltage 10.8-20 VDC
Input Draw 650mA
Dimensions Gimbal Mount:7.55""W x 4.64""H x 3.3""D
Indash Mount:7.55""W x 4.28""D x 1.13""D

What's in the Box:
  • Helix 5 DI G2
  • Bracket
  • Powercord
  • XNT 9 DI T
  • Documentation
